2. 创建基础的模型类
一个类就是一个表
django会自动添加主键, 多数情况下不需要自己设置主键
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
from django.db import models
# Create your models here.
class Product(models.Model):
title = models.CharField(max_length=255)
description = models.TextField()
price = models.DecimalField(max_digits=6, decimal_places=2)
inventory = models.IntegerField()
last_updated = models.DateTimeField(auto_now=True)
class Customer(models.Model):
first_name = models.CharField(max_length=255)
last_name = models.CharField(max_length=255)
email = models.EmailField(unique=True)
phone = models.CharField(max_length=255)
birth_date = models.DateField(null=True)
选项字段
django通过选项字段来处理枚举类型, 对该选项进行定义
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
class Customer(models.Model):
MEMBERSHIP_BRONZE = 'B'
MEMBERSHIP_SILVER = 'S'
MEMBERSHIP_GOLD = 'G'
MEMBERSHIP_CHOICES = [
(MEMBERSHIP_BRONZE, 'Bronze'),
(MEMBERSHIP_BRONZE, 'Silver'),
(MEMBERSHIP_GOLD, 'Gold')
]
first_name = models.CharField(max_length=255)
last_name = models.CharField(max_length=255)
email = models.EmailField(unique=True)
phone = models.CharField(max_length=255)
birth_date = models.DateField(null=True)
membership = models.CharField(max_length=1,
choices=MEMBERSHIP_CHOICES,
default=MEMBERSHIP_BRONZE)
解决循环引用

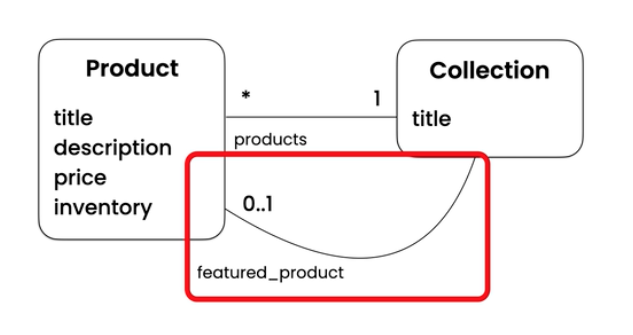

在某些需求中, 可能存在两个表之间的相互外键引用, 如上图所示:
- 多个Product可以隶属于一个Collection
- 每个Collection最多只能有一款主打产品,
于是就产生了Product与Collection之间相互引用的问题
- Product (m) – (1) Collection
- Product (0,1) – (1) Collection
在models定义的过程中, 由于代码是从上到下编译的, 所以就会出现一个引用了未定义类型的问题.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
class Collection(models.Model):
title = models.CharField(max_length=255)
# 由于Product尚未定义, 此时代码无法编译
# featured_product = models.ForeignKey(
# Product, on_delete=models.SET_NULL, null=True)
# 通过字符串来传递模型类的名称, 便可以解决这个问题
featured_product = models.ForeignKey(
'Product', on_delete=models.SET_NULL, null=True, related_name='+')
# other fields
# !!!但是通过该方法, 虽然能够解决数据模型的相互依赖问题, 但是如果在后续维护时对Product进行重名经操作, 上面的字符串是不会同时修改的, 也就有可能引起其他异常
class Product(models.Model):
title = models.CharField(max_length=255)
collection = models.ForeignKey(Collection, on_delete=models.PROTECT)
# other fields
总的来说, 循环引用的问题并非无法解决, 但是在进行数据库设计的时候应当尽力避免
